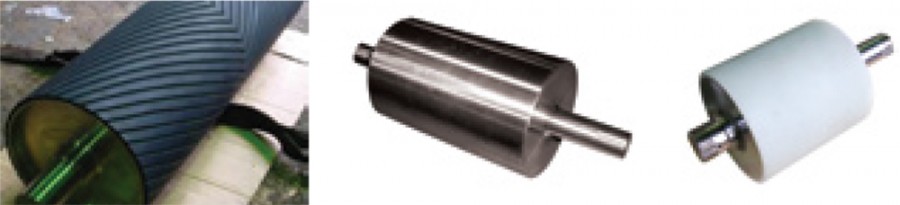

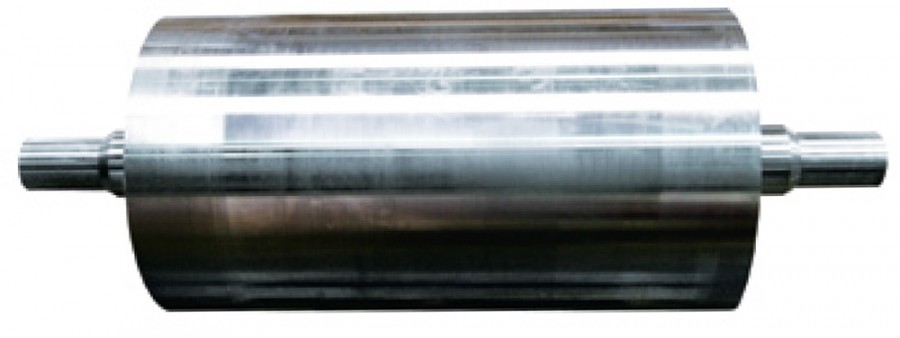

WPR 마그네트 롤러
페이지 정보
본문
- 벨트 콘베어의 구동부 및 종동부의 롤러를 마그네트 롤러로 제작·설치하여 이송 되는 원료나 산업 쓰레기, 소각장 등에 혼합된 철편, 못, 공구 등의 자성물을 제거 하는데 사용합니다.
- This is used for removing the magnetic substance such a iron pieces, nails, tools, etc. mixed from transferred raw materials or industrial waste and an incinerator plant, etc. by installing this magnetic roller at the driving part and a finishing part of a belt conveyor
- 전원이 필요 없는 영구자석식으로 반영구적 사용이 가능합니다.
- 자력의 세기가 높으므로 탁월한 철편회수 능력을 발휘합니다.
- 설치용도 및 사용용도에 따라 전자석 롤러 등의 특수롤러도 설계가 가능합니다.
- This is a permanent magnet type for which a DC power supply equipment doesn’ need to be installed. So the life if this magnet is semi-permanent.
- The magnetic force is high, this leads to an excellent separation efficiency of iron pieces.
- The special design of roller such as an electromagnetic roller, etc. is possible according to a various application.
