RCP 전자석 제어반
페이지 정보
본문

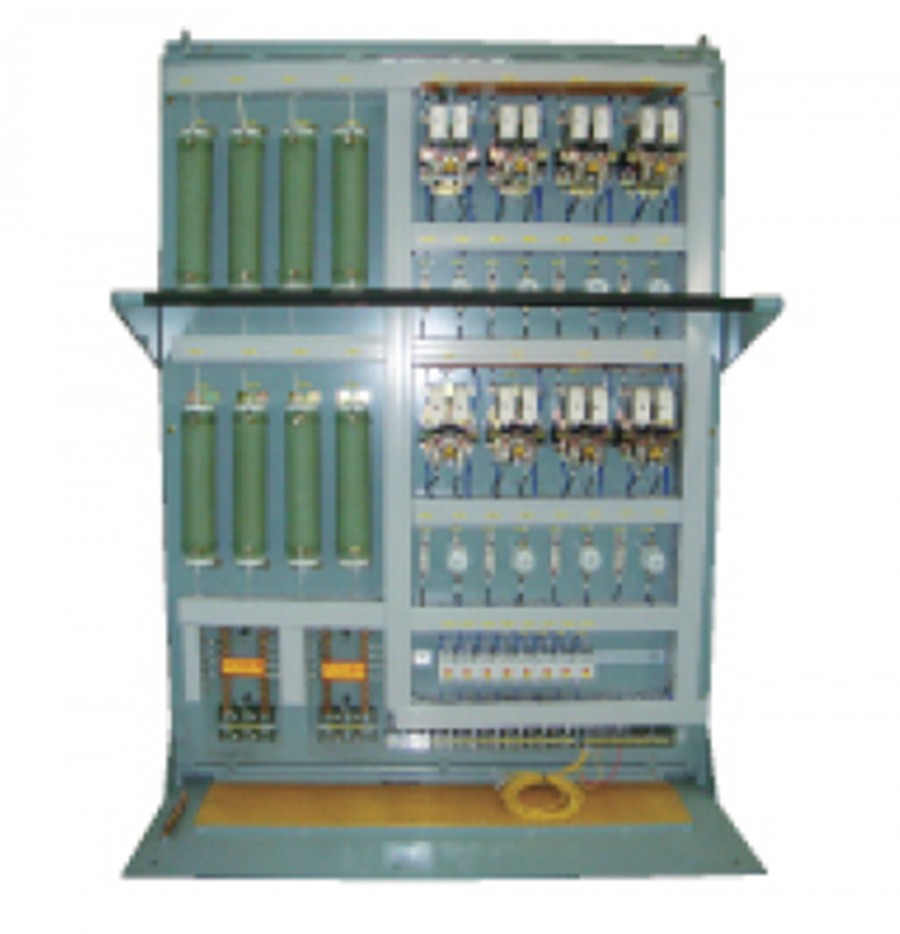

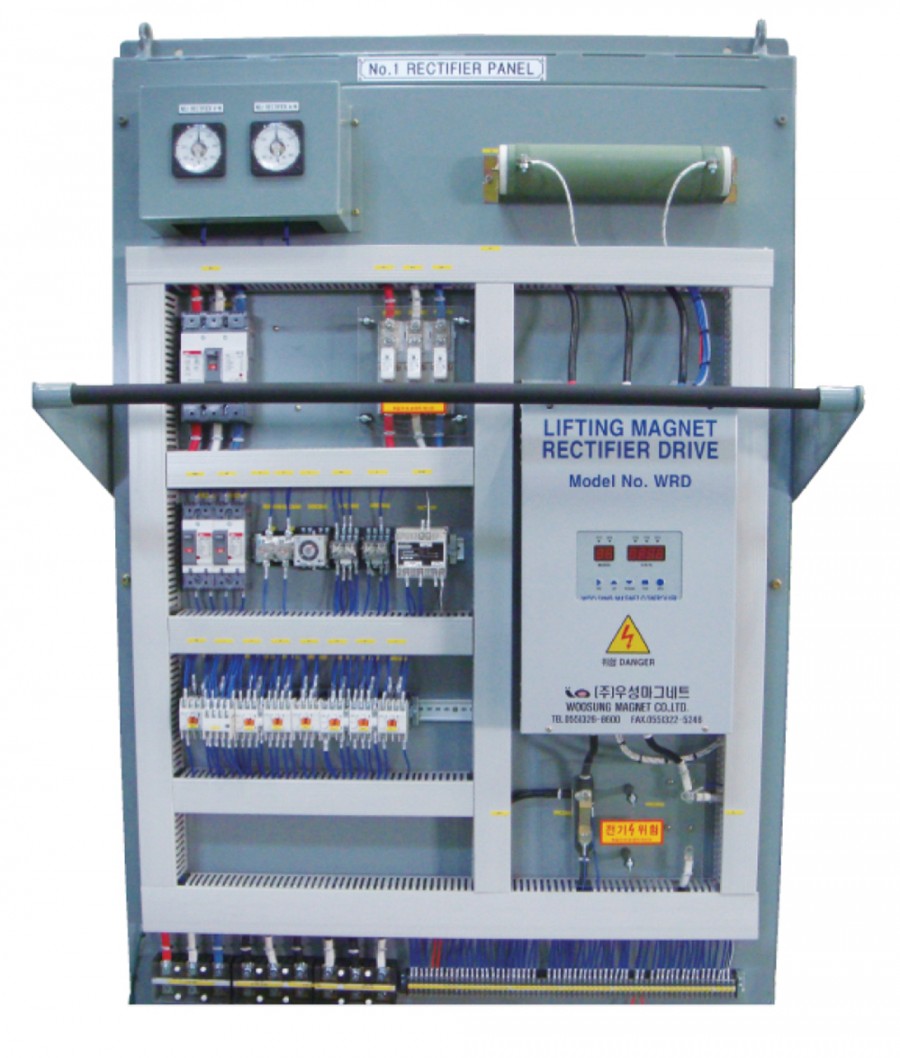

- RCP, CCP-Series는 (주)우성마그네트에서 설계, 제작하는 전자석 전용 제어반으로 교류를 직류로 변환시켜 전자석의 흡착과 탈착을 반복 할 수 있도록 구성되었으면, 정전시 비상 밧데리로 전환하여 안전한 작업을 할 수 있도록 하였습니다.
- RCP, CCP-Series are the electric power supply panels for the elecromagnets.
These panels make the magnets operated repeatedly "on" and "off" by rectifying A.C to D.C without any trouble, and are equipped with the emergency battery units against an accident.
- 자력을 다단 EH는 무단으로 자유롭게 조절할 수 있습니다.
- 여러 개의 전자석을 Group또는 개별 선택을 하여 운전 할 수 있습니다.
- 탈착 시 전자석에 있는 잔류자기를 급속히 제거하여 작업성을 높였습니다.
- 비상 전원 밧데리는 10분, 15분, 20분, 30분 정격으로 선택할 수 있습니다.
- A magnetic force can be adjusted by controlling a Notch switch or Potentiameter switch.
- You can operate the many magnets by all once (group operation)or one by on(individual operation)freely by operating a selection switch.
- The residual magnetic flux after "off" can be removed rapidly.
This will be helpful to increase a working productivity
- The battery back-up time (emergency battery time) is optional by 10min, 15min, 20min and 30minutes.
